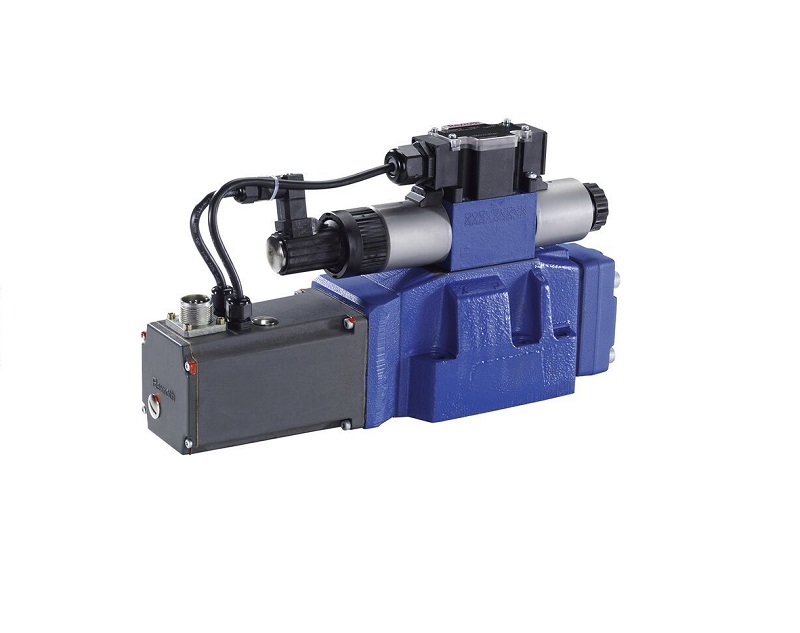

Rexroth 4WRTE 10 V-50L-4X/6EG24ETK31/A1M(R900954260) Proportional Directional Control Valve

Description

Rexroth 4WRTE 10 V-50L-4X/6EG24ETK31/A1M(R900954260) Proportional Directional Control Valve

Rexroth 4WRTE 10 V-50L-4X/6EG24ETK31/A1M Proportional Directional Control Valve

Product Overview:
The Rexroth 4WRTE 10 V-50L-4X/6EG24ETK31/A1M is a high-performance proportional directional control valve, designed for a wide range of industrial and mobile hydraulic applications. This valve features a 3-position, 4-way design with a pilot-operated main spool and integrated electronic components, providing precise flow and pressure control.

Key Features:
1. Valve Type: 3-position, 4-way proportional directional control valve with pilot-operated main spool.
2. Nominal Size: 10, with ISO 4401-05-05-0-94 port configuration.
3. Spool Type: Closed-center with zero overlap control edges.
4. Flow Capacity: 50 L/min, with a pressure drop of 10 bar across the valve.
5. Characteristic Curve: Linear control characteristics.
6. Series: 4X, belonging to the Rexroth series 40 to 49.
7. Pilot Control: Proportional solenoid with removable coil.
8. Supply Voltage: 24 VDC.
9. Control Oil: Internal pressure supply and return.
10. Electrical Interface: Plug-in connector according to DIN EN 175201-804, without cable socket (ordered separately).
11. Input Signal: +/- 10 V.
12. Seals: NBR seals, suitable for mineral oils (HL, HLP) according to DIN 51 524. Other fluids available upon request.

The Rexroth 4WRTE 10 V-50L-4X/6EG24ETK31/A1M proportional directional control valve offers precise flow and pressure control, making it an ideal choice for demanding hydraulic systems that require accurate positioning and speed regulation. Its compact design, flexible mounting options, and rugged construction ensure reliable long-term operation, even in harsh environments.
