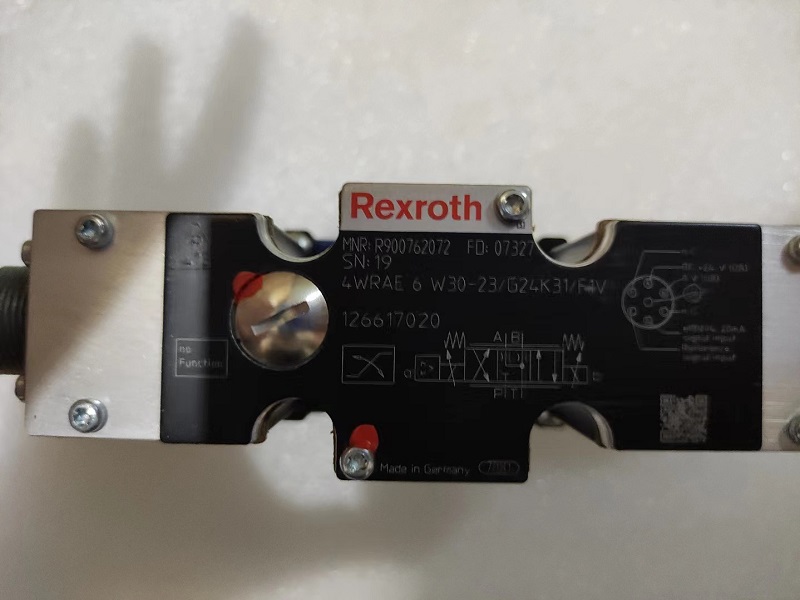

Rexroth 4WRAE6W30-2X/G24K31/F1V PROPORTIONAL DIRECTIONAL VALVE

Description

Rexroth 4WRAE6W30-2X/G24K31/F1V PROPORTIONAL DIRECTIONAL VALVE

Product Model: Rexroth 4WRAE6W30-2X/G24K31/F1V

The Rexroth 4WRAE6W30-2X/G24K31/F1V is an industrial hydraulic valve that operates in a high-performance range, providing reliable control of oil flow direction according to hydraulic symbols.

Product Features:

– Connection Diagram: ISO 4401-03-02-0-05 compliant.
– Maximum Pressure: 315 bar, suitable for high-pressure hydraulic systems.
– Maximum Flow: 42 l/min, offering high flow rate hydraulic fluid control.
– Spool Symbol: Symbol W, indicating a spool valve.
– Controls: Integrated electronics for electronic control.
– Type of Connection: Subplate mounting for easy installation and maintenance.
– Nominal Flow: 26 l/min, providing standard flow rate hydraulic control.
– Size: Size 6, conforming to international standard dimensions.
– Type of Actuation: Electrical actuation with integrated electronics.
– Number of Ports: 4, offering multiple hydraulic connection options.
– Number of Switching Positions: 3, enabling various hydraulic control modes.
– Supply Voltage: 24 VDC, suitable for DC power supply.
– Electrical Connector: 7-pole connector (6 + PE) according to DIN EN 175201-804 standard.
– Hydraulic Fluid: Suitable for HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR hydraulic fluids.
– Seals: FKM (fluoroelastomer) seals, providing excellent chemical and high-temperature resistance.
– Weight: 2.2 kg, lightweight yet sturdy construction.

In summary, the Rexroth 4WRAE6W30-2X/G24K31/F1V hydraulic valve is a high-performance industrial hydraulic valve. It offers reliable control capabilities and is suitable for various hydraulic systems. With integrated electronic control, it enables precise flow control. Its standard size and convenient subplate mounting make it easy to install and maintain. Whether in industrial applications or other hydraulic control scenarios, the 4WRAE6W30-2X/G24K31/F1V provides reliable performance and excellent functionality.
