Parker TG0530MS050AAAB Motor

Description

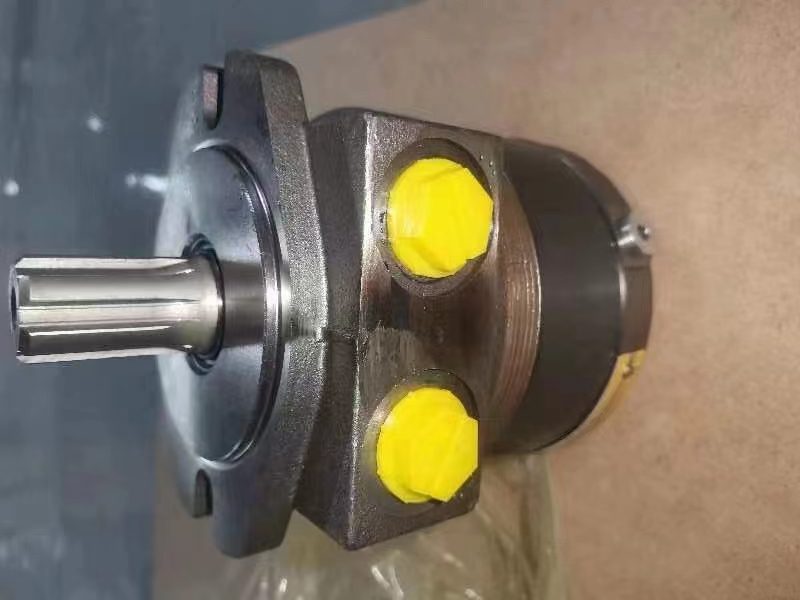

Parker TG0530MS050AAAB Motor

Parker TG0530MS050AAAB Torqmotor™ Series

The Parker TG0530MS050AAAB Torqmotor™ series features a robust design with continuous oil flow at the splines for extended life, excellent lateral load capability, and smooth operation at ultra-low speeds. High-pressure shaft seals are standard, and the innovative design eliminates the need for a case drain. Built with high-quality design and manufacturing, the product is designed and manufactured in Greeneville, Tennessee, USA, ensuring reliability.

This product is suitable for the following markets:
– Lawn and turf equipment
– Aerial equipment
– Agricultural machinery
– Construction equipment
– Factory automation
– Material handling equipment
– Oil and gas
– Forestry equipment
– Mining

Product Features/Advantages:
– Capable of withstanding dynamic lateral loads up to 3600 pounds at the splines
– Robust design for extended life
– Continuous oil flow at the splines for extended life
– Excellent lateral load capability
– Smooth operation at ultra-low speeds
– High-pressure shaft seals are standard
– Innovative design eliminates the need for a case drain
– Reliability based on high-quality design and manufacturing
– Designed and manufactured in Greeneville, Tennessee, USA

Applications for the product include:
– Trenchers
– Compact loader attachments
– Zero-turn mowers
– Golf course maintenance equipment
– Sweepers
– Wood chippers
– Conveyors
– Combine harvesters
– Winches
– Augers
– Portable irrigation systems
– Drills
– Specialty harvesters for potatoes, tomatoes, nuts, leafy vegetables, sugar crops, cotton, coffee, grapes, and more
– Combine harvester header drive units
– Sprayers
– Scissor lift platforms
– Snow removal equipment
– Salt and sand spreaders
– Hybrid vehicles for oil and gas
– Mini and walk-behind compact loaders
– Tool carriers
– Pipe rotation machines

General specifications for the Parker TG0530MS050AAAB series:
– Brand: Torqmotor™
– Displacement: Motor: 141 – 959 cm3/rev, Pump: 8.6 – 58.5 inch3/rev
– Maximum pressure differential: Intermittent 103 to 276 (continuous 69 to 207) bar, 1500 to 4000 intermittent (1000 to 3000 continuous) psi
– Maximum flow: Intermittent 95 to 114 (continuous 76) lpm, Intermittent 25 to 30 (continuous 20) gpm
– Maximum output torque: Intermittent 530 to 1268 (continuous 390 to 773) Nm, Intermittent 4692 to 11227 (continuous 3455 to 6843) lbf-in
– Minimum start torque: Intermittent 418 to 1177 (continuous 315 to 763) Nm, Intermittent 3706 to 10419 (continuous 2791 to 6752) lbf-in
– Maximum speed: Intermittent flow: 118 to 660 rpm
– Shaft diameter: 1.25 inches nominal (other sizes available)

For more detailed specifications and technical information, please refer to the product documentation or contact Parker’s customer service.
