Parker RAH101S30 Pilot Operated Relief Valves

Description

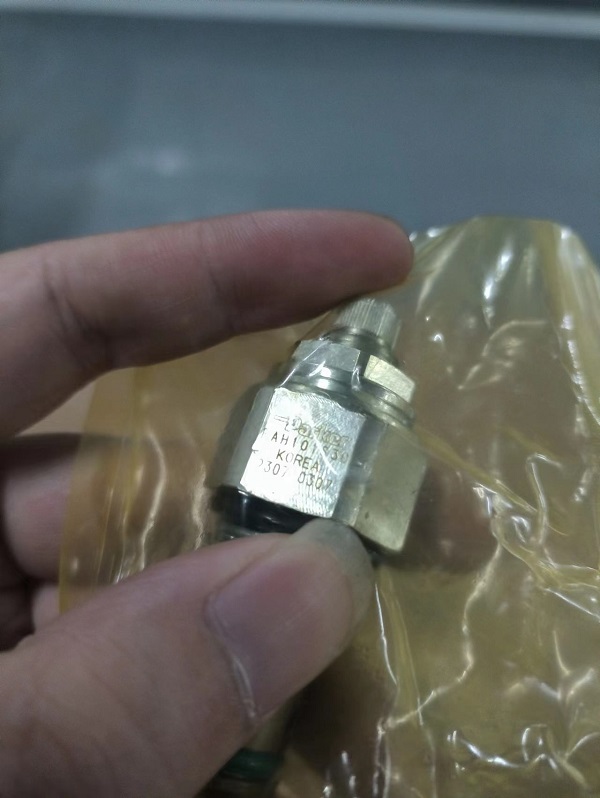

Parker RAH101S30 Pilot Operated Relief Valves
The Parker RAH101S30 is a pressure relief valve with pilot operation. This valve features a stable design with low pressure drop, making it suitable for continuous duty applications and reducing hydraulic noise.

The RAH101S30 has a maximum flow rate of 30 Gal/min (113 L/min) and a maximum inlet pressure of 5000 psi (350 bar). The pressure control range can be adjusted from 200-3000 psi (13.8-210 bar) using the screw adjustment mechanism. The standard set pressure is 1500 psi (103.5 bar) with a pressure control sensitivity of 859 psi per turn (58.9 bar per turn).

The valve utilizes D-ring seals for reliable sealing performance. The valve body is made of steel, and all moving parts are hardened steel for durability and reliability.

The RAH101S30 is suitable for use with mineral-based or synthetic hydraulic fluids and has a high filter efficiency rating. It can operate in temperatures ranging from -35 to +200 °F (-37 to +93 °C), with a minimum operating temperature of -35 °F (-37 °C).

Please note that the above information is based on the provided specifications and may be subject to change. For accurate and up-to-date information, please refer to the actual product.
