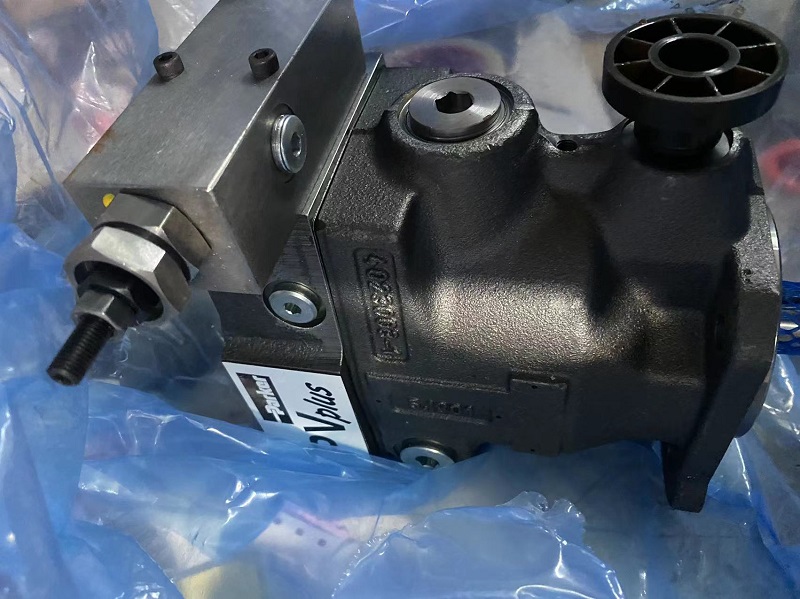

Parker PV023R1K1T1NMMC Hydraulic Pump
The PV023R1K1T1NMMC is a robust and reliable variable displacement piston hydraulic pump from Parker.
Description
Parker PV023R1K1T1NMMC Hydraulic Pump
PV023R1K1T1NMMC Parker Hydraulic Pump: Product Description
The PV023R1K1T1NMMC is a robust and reliable variable displacement piston hydraulic pump from Parker. The pump features a standard variation and can be configured as a single, tandem, or multiple pump to meet various system requirements. It has a maximum displacement of 23 cm³/rev and is constructed with a cast-iron material.
The pump’s shaft is a metric keyed shaft, and it has K mounting interface and threaded ports (BSPP and Metric) suitable for standard hydraulic fluids, water glycol, biodegradable, and fire-resistant fluids. The pump is suitable for open circuit hydraulic systems, has a maximum operating pressure of 420 bar, and can operate at a maximum speed of 3000 RPM.
Hydromechanical controls regulate the pump’s operations, and the pump has pressure compensators with an integrated Pmax pilot, ensuring optimal system pressure. A through-drive capability enables the pump to share a common shaft, thereby reducing the number of components required for the system.
The pump is suitable for use in hydraulic and liquid media, has a clockwise rotation, and is equipped with pressure and displacement sensors to monitor the system’s performance. It has a maximum noise level of 96 dBA and features a drain option. The pump has SAE and ISO mounting options, flange, and straight threaded ports and a consult Parker radial load capacity.
In summary, the PV023R1K1T1NMMC pump is a high-performance hydraulic pump that is suitable for various hydraulic applications.
