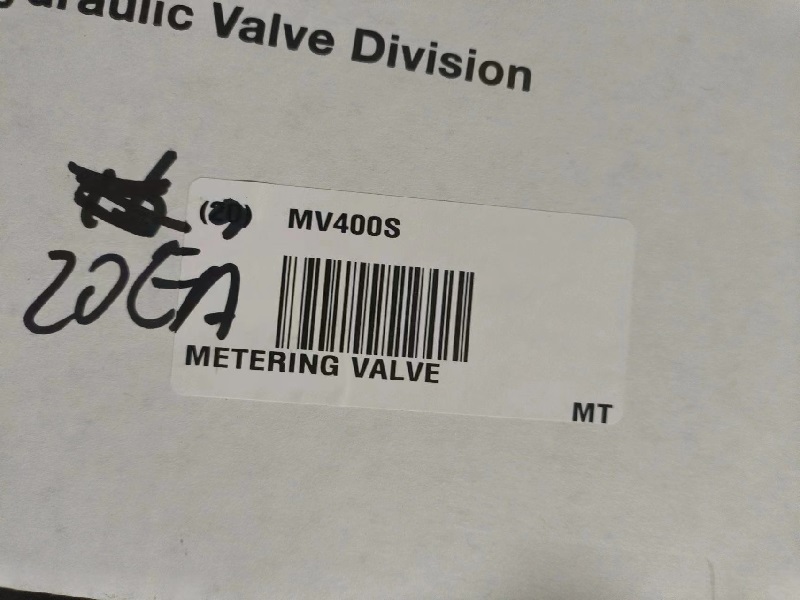

Parker MV400S Needle Valve

Description

Parker MV400S Needle Valve Product Overview

The MV400S is a model from Parker’s MV series of precision needle valves, which are part of the Colorflow family. These needle valves feature a visual indicator ring that provides precise control adjustment.

The MV series needle valves offer three adjustment options – standard, fine, and micrometer – and are available in both inline and angle configurations.

The key specifications of the MV400S needle valve are:

– Maximum Working Pressure: 5000 psi (345 bar)
– Maximum Flow Rate: 19 L/min, 5 Gal/min
– Connection Size: 1/4″ NPT
– Actuation: Manual
– Function: Precision Metering Valve
– Needle Type: Standard, 30° taper
– Temperature Range: -40°F (-40°C) to +250°F (+121°C)
– Body Material: Carbon Steel, black oxidized finish
– Seal Material: Nitrile

The MV400S is suitable for precise flow control applications involving gases, liquids, and oils. The carbon steel body and nitrile seals allow it to withstand high pressure and temperature conditions. A panel mount kit is available for installation.

As part of the MV series, the MV400S features the visual adjustment indicator provided by the Colorflow family, enabling precise control and monitoring.
