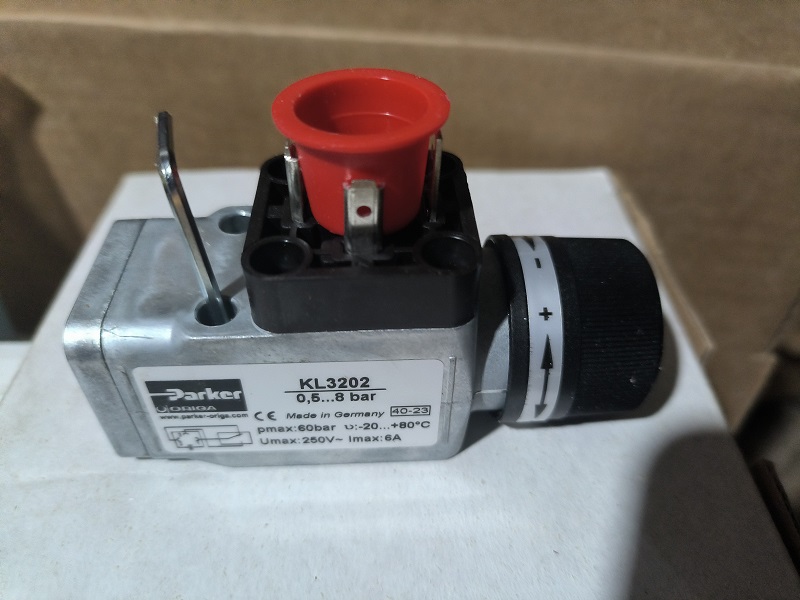

Parker KL3202 Pressure Switch

Description

Parker KL3202 Pressure Switch

Parker KL3202 Pressure Switch Product Description

Model: KL3202
Applicable connection size: G1/8″, G1/4″
Features:
– Suitable for intrinsically safe operation
– Especially compact design
– High switching frequency
– Attractive design
– Shock proof up to 30g
Range selection:
Selection is optimal when the switching points are in the middle of the switching range.
Electrical connection:
Wiring according to VDE regulations.
Tightening torque for plug: 0.7 ± 0.1 Nm
Outdoor use only with sufficient protection against critical environmental conditions (e.g. aggressive atmosphere, salty environments, high temperature changes).

The KL3202 pressure switch is designed and manufactured by Parker. It adopts G1/8″ or G1/4″ connection sizes and is suitable for intrinsically safe operation with high switching frequency and compact elegant appearance. It has flexible selection of switching point range and conforms to VDE standards for electrical connection. It has good shock resistance and can be used outdoors as long as environmental conditions permit.
