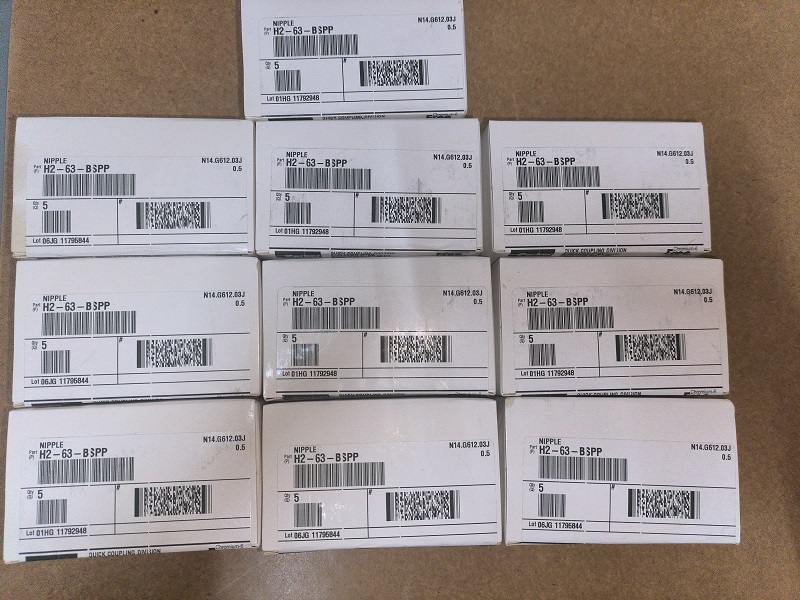

Parker H2-63-BSPP Hydraulic Quick Couplings

Description

Parker H2-63-BSPP Hydraulic Quick Couplings

Parker H2-63-BSPP Quick Disconnect Couplings

Technical Specifications:

Complies with ISO 7241-1, series B standards
Male nipple coupling half
For general purpose use
Maximum operating temperature: 121°C/250°F
Maximum operating pressure: 5000 psi
Manual quick connect type
1/4 inch body size
Minimum operating temperature: -40°F/-40°C
Steel body material
Nitrile seal material
Flow rate: 11 L/min, 3 Gal/min
Female BSPP end connection
0.75 inch hex size
1/4-18 inch connection thread size
Vacuum pressure rating: -0.9 bar, 27.4 Inch-Hg
Steel valve material
Zinc plated with clear trivalent chromate
Product Description: The Parker H2-63-BSPP is a general purpose quick disconnect coupling that complies with ISO 7241 series B standards. It can be used with hydraulic fluids, gases, steam, and other fluids with pressures up to 5000 psi. The steel poppet valve body provides strength and durability, while the nitrile seals ensure reliable sealing at temperatures from -40°F to 250°F.

The female BSPP threaded end connection makes it compatible with many industrial components. The 0.75″ hex allows for easy assembly and disassembly using standard tools. As an ISO-compliant coupling, it can interconnect with manifolds and hoses from other manufacturers.

Key Features and Benefits:

Interchangeable with other ISO 7241 series B quick couplings
Suitable for versatile fluid transfer applications
Hardened steel sleeve enhances structural integrity
Metal valve stop maintains steady flow
Zinc plating resists corrosion
Nitrile seals work well for most hydraulic fluids and gases
Compact design for space-constrained installations
