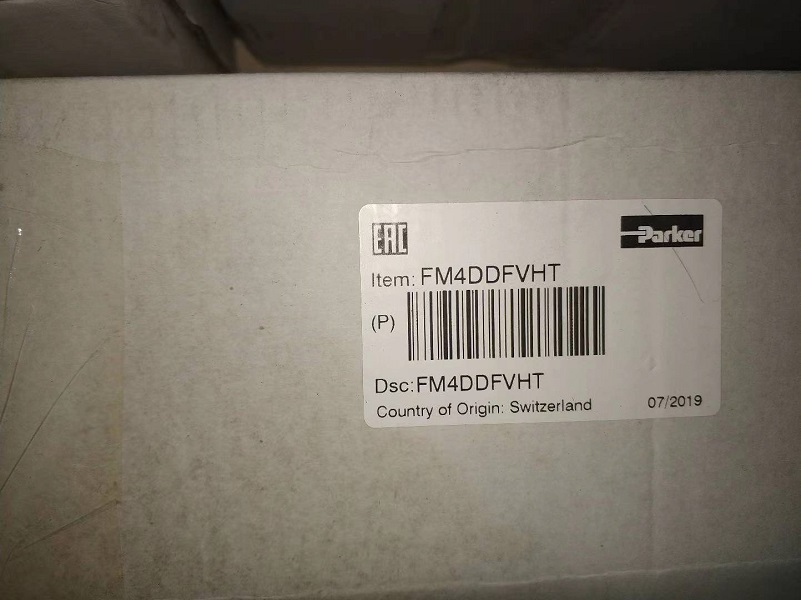

Parker FM4DDFVHT Double-throttle Check Valve

Description

Parker FM4DDFVHT Double-throttle Check Valve

Product Description:
The Parker FM4DDFVHT is a double-throttle check valve that belongs to the FM series. It is designed to provide precise and energy-efficient processes by offering high flow at low pressure drop. This valve is ideally suited for conventional stack systems and enables easy configuration.

The FM4DDFVHT features a steel body construction and is designed for mounting on a sandwich plate. It can be actuated manually and allows unrestricted mounting positions. The valve does not have a coating. The maximum operating pressure is 350 bar, and it can handle a maximum flow rate of 200 L/min. The valve is compatible with a port connection of NG16 (CETOP 07). The seal material used is FPM, which ensures reliable performance even under demanding conditions.

This meter-in throttle version of the double-throttle check valve is equipped with a standard needle type and an adjustment mechanism using a hexagon socket. The cracking pressure is 0.3 bar, and the flow direction and specific configuration details are not applicable (N/A). The valve can operate within a temperature range of -20 °C to 60 °C.

The FM4DDFVHT double-throttle check valve weighs approximately 5.4 kg, making it a sturdy and durable option for various applications. It is part of Parker’s comprehensive range of sandwich plate valves, offering efficient and reliable solutions for industrial processes.

Product Specifications:
– Coating: Without coating
– Product Series: Throttle check valve
– Mounting Type: Sandwich plate
– Mounting Position: Unrestricted
– Actuation Type: Manually
– Body Material: Steel
– Connection Size: N/A
– Maximum Operating Pressure: 350 bar
– Maximum Flow Rate: 200 L/min
– Maximum Operating Temperature: 60 °C
– Seal Material: FPM
– Port Connection: NG16 / CETOP 07
– Needle Type: Standard
– Version: Meter-in throttle
– Adjustment Mechanism: Hexagon socket
– Configuration: N/A
– Connection Type: N/A
– Cracking Pressure: 0.3 bar
– Flow Direction: N/A
– Minimum Operating Temperature: -20 °C
– Weight: 5.4 kg

Please note that the provided information is based on the given parameters and data. For precise and up-to-date specifications, refer to official Parker documentation
