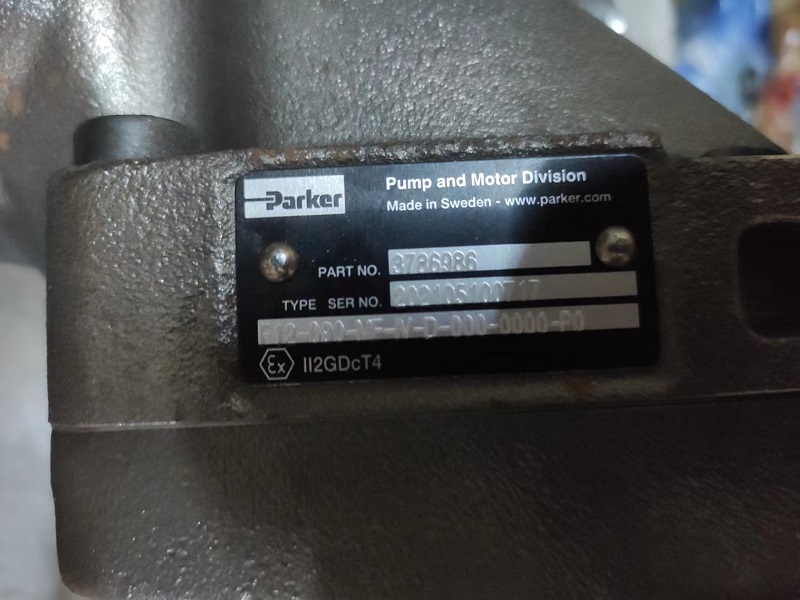

Parker F12-090-MF-IV-D-000-0000-P0 Motor
Description
Parker F12-090-MF-IV-D-000-0000-P0 Motor
Technical Specifications:
- Pump Type: Piston, Fixed
- Body Material: Cast Iron
- Configuration: Single
- Maximum Displacement: 242 cm3/rev, 14.76 inch3/rev
- Operating Pressure: up to 480 bar, up to 6960 psi
- Maximum Flow Rate: 363 l/min, 95.83 gal/min
- For Fluid Type: Standard Hydraulic Fluid
- Media: Hydraulic
- Maximum Operating Speed: 3150 RPM
- Minimum Fluid Temperature: -40 °F
- Maximum Fluid Temperature: 115 °C, 239 °F
- Weight: 26 KG
- Shaft Type: SAE | ISO
- Mounting Option: SAE | ISO | CETOP | CARTRIDGE
- Port Type: Flange
- Port Connection: SAE | ISO | BSPP
- Port Location: Side Ports | Rear Ports | Opposing Ports | Configurable
- Direction of Rotation: Clockwise | Counter Clockwise | Bi-Rotational
- Circuit Path: Open
- Sensor Type: Speed | Rotation
- Maximum Noise Level: 88 dBA
- Drain Option: Yes
- Filter Included: No
- Radial Load Capacity: 4180 lb, 1900 kg
- Minimum Kinematic Viscosity: 8 cSt, 37.3 SUS
- Maximum Kinematic Viscosity: 1000 cSt, 4664 SUS
- Thru-Drive Capability: No
- Energy Recovery Capability: Yes
- Charge Pump Included: No
Parker F12-090-MF-IV-D-000-0000-P0 Product Introduction:
The Parker F12-090-MF-IV-D-000-0000-P0 is a highly efficient piston pump with a fixed design. It is made of cast iron and has a single configuration. With a maximum displacement of 242 cm3/rev, it can operate at pressures up to 480 bar. The pump has a maximum flow rate of 363 l/min, making it suitable for standard hydraulic fluid applications.
The F12-090-MF-IV-D-000-0000-P0 pump has a maximum operating speed of 3150 RPM and can withstand temperatures ranging from -40 °F to 115 °C. It has a weight of 77 kg and offers various shaft types and mounting options such as SAE, ISO, CETOP, and CARTRIDGE.
The pump features flange ports with SAE, ISO, and BSPP connections, and the port location can be configured as side ports, rear ports, or opposing ports. It can rotate clockwise or counterclockwise, and it supports bi-rotational operation. The circuit path is open, and the pump can be equipped with speed and rotation sensors.
With a maximum noise level of 88 dBA, the F12-090-MF-IV-D-000-0000-P0 pump has a drain option but does not include a filter. It has a radial load capacity of 4180 lb and requires a minimum kinematic viscosity of 8 cSt.
This pump does not have through-drive capability, but it does offer energy recovery capability. The charge pump is not included.
The Parker F12-090-MF-IV-D-000-0000-P0 is a reliable and durable pump suitable for demanding applications in both open and closed loop systems. It is part of the F12 series, which includes pumps ranging from 30 to 250cc in size.
