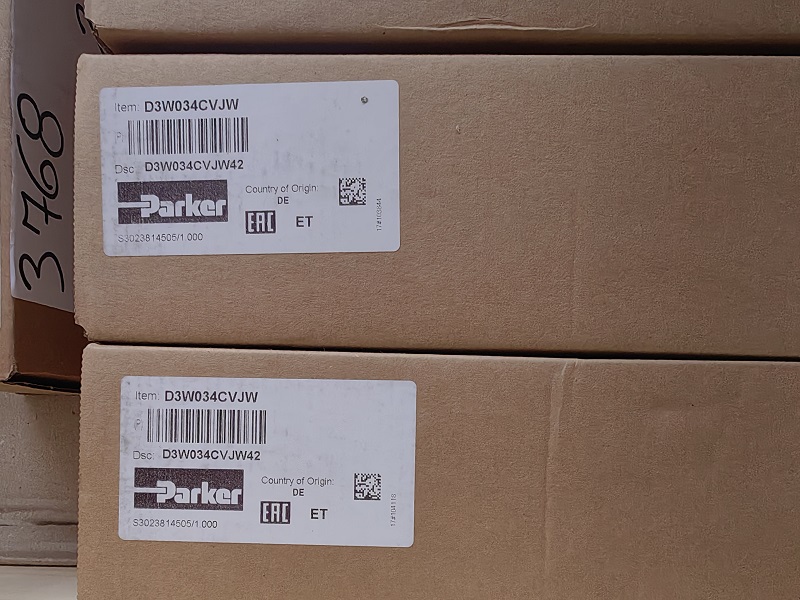

Parker D3W034CVJW Directional Control Valve

Description

Product Overview
The Parker D3W034CVJW is a direct operated directional control valve belonging to Parker’s D3W series in the NG10 (CETOP 05/ NFPA D05) size.
This valve is designed for industrial applications and offers a range of features that make it a reliable and efficient choice for hydraulic systems.
Technical Specifications
Input Voltage: The valve operates on a 24 VDC input voltage, ensuring stable and consistent performance.
Connection Type: It features a connector as per EN 175301-803, and the solenoid identification adheres to ISO 9461 (code W), providing standardized and reliable connections.
Spool Code and Position: With a spool code of 034, it has a C – 3 positions configuration.
The spring is offset in position 0, and it can be operated in position a or b, allowing for flexible control of the hydraulic flow.
Product Series and Type: It is part of the S Series and is a directional spool valve, which is actuated by a solenoid.
Material – Seals: The seals are made of V – FPM material, ensuring excellent resistance to various media and harsh operating conditions.
Size and Interface Type: The valve has a size of DIN NG10 / CETOP 05 / NFPA D05 nom, and its interface type conforms to DIN 24340 A10 / ISO 4401 / CETOP RP 121-H / NFPA D05, enabling easy integration into different hydraulic systems.
Maximum Operating Pressure: The maximum operating pressure for ports P, A, B is 350 bar, and for port T is 210 bar, making it suitable for high-pressure applications.
Maximum Flow Rate: The maximum flow rate is 150 L/min (depending on the spool, see shift limits), ensuring efficient fluid handling.
Solenoid Option: The standard option is to omit the manual override, providing a simplified and reliable operation.
Ingress Protection Rating: It has an IP65 ingress protection rating in accordance with EN 60529 (with correctly mounted plug-in connector), protecting the valve from dust and water jets.
Weight and Temperature Range: The valve weighs 6.3 kg and has a maximum operating temperature of 50 °C and a minimum operating temperature of -25 °C, making it suitable for a wide range of environmental conditions.
Body Material: The body is made of gray iron, providing durability and strength.
Features and Benefits
Compact and Proven Design: The valve features a compact design that is a result of Parker’s long-term experience in hydraulics.
This design ensures reliable performance and easy installation in various industrial applications.
High Functional Limits: With high functional limits, the valve can handle low forces even at high flow rates, resulting in safe and stable operation.
Low Pressure Drop: The optimized flow passages of the valve result in a low pressure drop, which in turn leads to low energy losses during operation, making it an economical choice.
Wide Range of Spools: The availability of a wide range of spools makes the valve suitable for all hydraulic systems, providing flexibility in design and application.
Shortest Lead Time: The valve offers the shortest lead time, eliminating the need for warehousing and reducing inventory costs.
Alternative Option: It is also available as a 5-chamber valve (D3DW) for applications with high tank pressure and extreme flow conditions, providing additional flexibility and performance.
Market Application
The Parker D3W034CVJW is specifically designed for the industrial market, where reliable and efficient hydraulic control is essential.
It can be used in various industrial applications, such as manufacturing, construction, and material handling, to control the direction and flow of hydraulic fluids.
In conclusion, the Parker D3W034CVJW directional spool valve is a high-quality product that offers a combination of technical excellence, reliability, and flexibility.
Its features and benefits make it an ideal choice for industrial applications that require precise hydraulic control.
