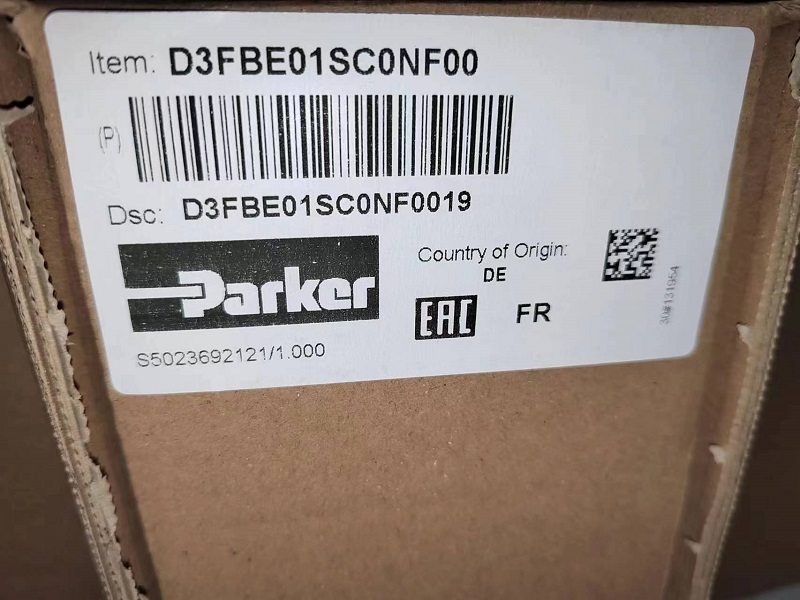

Parker D3FBE01SC0NF00 Proportional Directional Control Valve

Description

Parker D3FBE01SC0NF00 Proportional Directional Control Valve

The D3FBE01SC0NF00 is a proportional directional control valve from Parker’s D*1FB series, with a size of NG10 (CETOP 05). This valve is manufactured by Parker Hannifin Corporation and is designed for precise flow control in hydraulic systems.

The ordering code description for D3FBE01SC0NF00 is as follows:

Ordering Code: D3FBE01SC0NF00
D3FBE – Valve series and size
01 – Valve function and flow
SC – Valve options and connections
0N – Solenoid voltage and seal material
F00 – Valve design and special options

Key parameters for the D3FBE01SC0NF00 valve are as follows:

– Valve Type: Proportional directional control valve
– Actuation: Proportional solenoid
– Size: NG10 (CETOP 05)
– Mounting interface: DIN 24340 / ISO 4401 / CETOP RP121 / NFPA
– Operating pressure range: Up to 350 bar
– Fluid: Hydraulic oil according to DIN 51524 … 535 standard
– Temperature range: -20°C to +60°C
– Nominal flow: 75 liters/minute (at 5 bar pressure differential)
– Leakage rate: 100 ml/minute at 100 bar
– Solenoid voltage: 24V/1.1A
– Electrical characteristics: 100% duty ratio, IP65 protection class
– Dimensions: Standard dimensions as per specifications.

The D3FBE01SC0NF00 valve is suitable for various hydraulic applications that require precise flow control. It features progressive flow characteristics, high flow capacity, and is designed and manufactured to Parker Hannifin’s high-quality standards.

For more information about the D3FBE01SC0NF00 valve and other proportional valves from Parker Hannifin Corporation, please visit their official website
