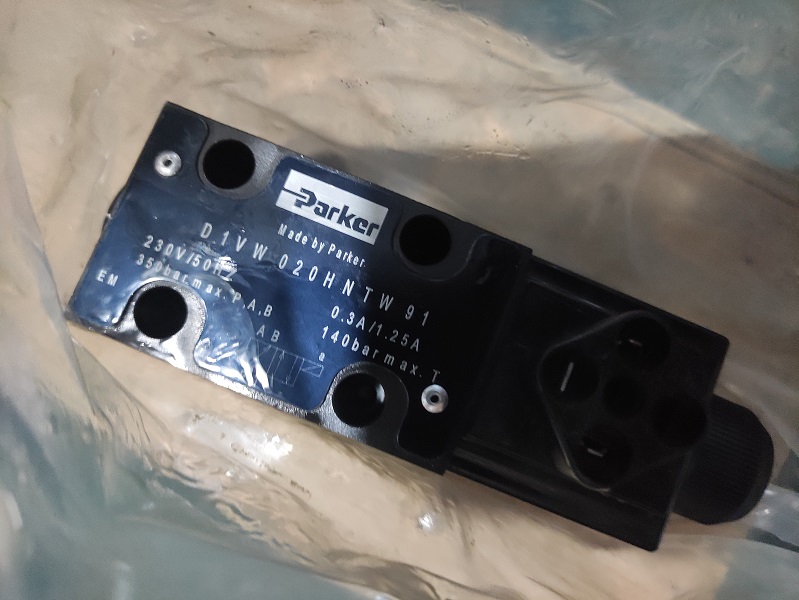

Parker D1VW020HNTW Directional Valve

Description

Parker D1VW020HNTW Directional Valve

Parker’s D1VW020HNTW directional spool valve is a part of the S Series, designed for high-performance hydraulic applications in industrial settings. This valve, with its compact and proven design, offers a wide range of spools, ensuring compatibility with various hydraulic systems. Its innovative construction provides a maximum flow rate of 80 L/min, with a maximum operating pressure of 350 bar and an energy-saving pressure drop due to optimized flow passages.

The D1VW020HNTW is equipped with a solenoid actuation type and operates at an input voltage of 230V 50Hz / 240V 60Hz. Its robust construction, made of gray iron, ensures durability and reliability in diverse industrial environments. The valve’s NBR seals and IP65 ingress protection rating make it suitable for a wide range of operating temperatures, from -25°C to 60°C.

This directional spool valve offers 2 positions with spring offset in position a and operation in position b, providing flexibility and precision in hydraulic control. The optional soft shift feature ensures smooth operation, while the manual override option offers added versatility.

With its wide range of spools and options, the D1VW020HNTW allows for the creation of custom hydraulic circuits, making it suitable for a variety of general hydraulic applications. Its efficient design, high functional limits, and short lead time make it a reliable choice for industrial hydraulic systems.
