Parker D1VW020DNJDLJ5 Valve

Description

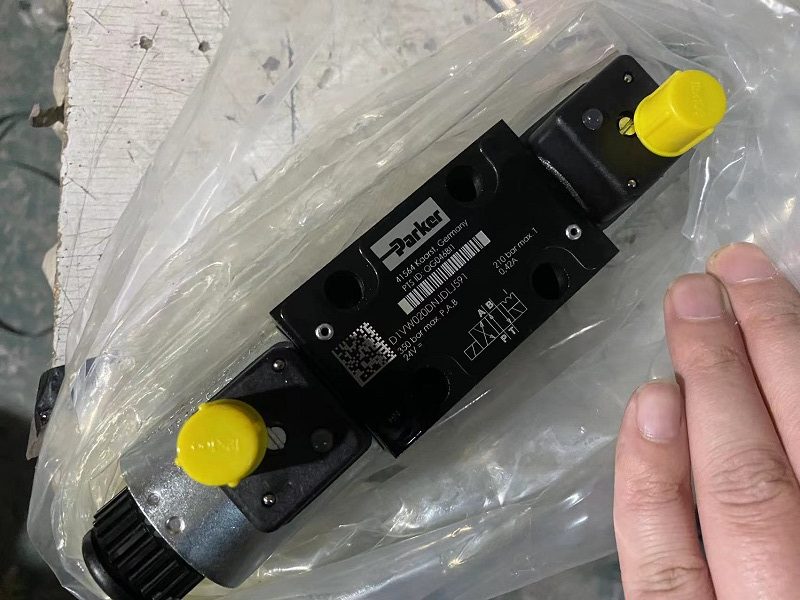

Parker D1VW020DNJDLJ5 Valve
The D1VW series of 8 Watt directional control valves are based on the standard D1VW design. The low watt, low current solenoid (<0.5A) of this on/off valve allows for a direct connection to a PLC. Its specific parameters are:

• Seal Material: NBR

• Solenoid Connection: M12x1 on coil as per IEC 61076-2-101

• Electrical Part Option: M12 pin assignment DESINA design, pins 1 and 2 connected

• Spool Position: 2 positions, detent, operated in position a or b, no center position, no offset position

• Spool Code: 20

• Product Series: Directional control valve

• Port Connection: NG06 / CETOP 03

• Mounting Type: Subplate mounting

• Mounting Position: Unrestricted, preferably horizontal

• Operation Type: Direct

• Actuation Type: Solenoid

• Input Voltage: 24 VDC

• Power Consumption: 8 W

• Function: 2-way

• Maximum Operating Pressure: 350 bar

• Maximum Flow Rate: 60 L/min

• Maximum Operating Temperature: 60 °C

• Minimum Operating Temperature: -25 °C

• For Fluid Type: Hydraulic oil according to DIN 51524

• Weight: 1.5 kg

• Body Material: Cast iron

Markets:

• Industrial

Features/Benefits:

• Compact, proven design that represents our long-term experience in hydraulics

• Low pressure drop – resulting in low energy losses in operation

• Wide range of spools – fits all hydraulic systems

• Shortest lead time – no warehousing necessary

Applications:

• Machine tools
