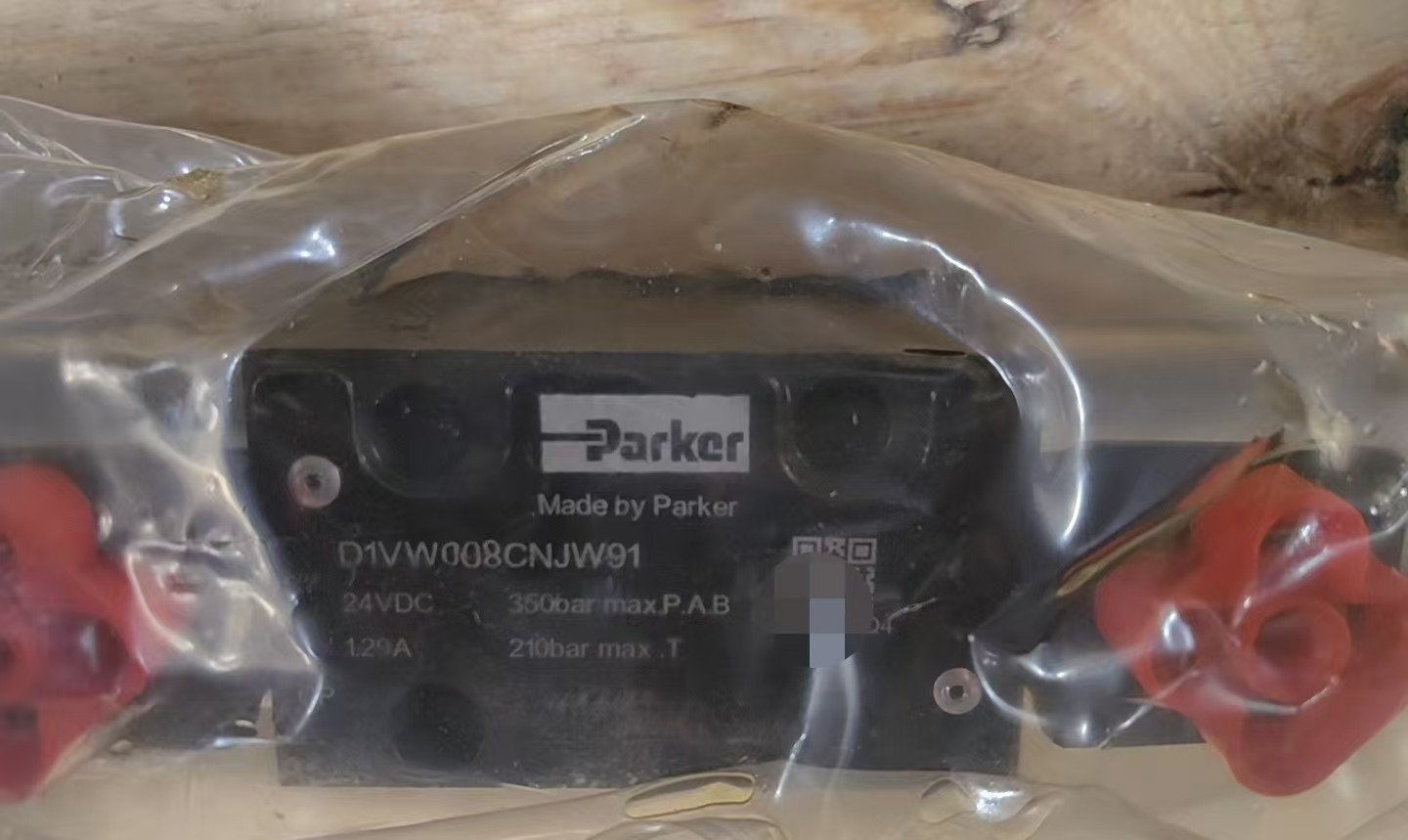

The Parker D1VW008CNJW is a high-quality directional control valve belonging to the D1VW series in the NG06 (CETOP 03 / NFPA D03) size range.
Description
1. General Overview
The Parker D1VW008CNJW is a high-quality directional control valve belonging to the D1VW series in the NG06 (CETOP 03 / NFPA D03) size range.
It is designed to meet the demands of industrial hydraulic systems with its reliable performance and advanced features.
2. Technical Specifications
Marking: Standard
Seal Material: NBR (Nitrile Butadiene Rubber), ensuring excellent sealing performance and compatibility with the specified fluid.
Spool Position: Features 3 positions, with the spring offset in position 0 and operable in position a or b.
Operation Type: Direct operation for quick and precise control.
Input Voltage: Operates at 24 VDC, providing a stable power source for reliable functioning.
Maximum Flow Rate: Capable of handling up to 50 L/min, meeting the flow requirements of various hydraulic applications.
Connection Type: Connector conforms to EN 175301-803 standard for easy and secure connections.
Solenoid Option: Standard solenoid, with additional options available for specific needs.
Spool Code: 008, indicating a specific spool configuration for optimized performance.
Mounting Type: Subplate mounting, allowing for convenient installation in hydraulic systems.
Actuation Type: Solenoid actuation, providing efficient and reliable valve operation.
Orifice Size: na
Product Series: Directional Control Valve
Weight: 2.1 kg, making it relatively lightweight for its functionality.
Maximum Operating Pressure: Can withstand up to 350 bar, ensuring it can handle high-pressure hydraulic applications.
Maximum Operating Temperature: 60 °C
Minimum Operating Temperature: -25 °C, enabling operation in a wide temperature range.
For Fluid Type: Suitable for Hydraulic Oil According to DIN 51524, ensuring compatibility with common hydraulic fluids.
Function: 2-Way, providing basic directional control for hydraulic fluid flow.
Port Connection: NG06 / CETOP 03, a common and widely used port connection standard.
Mounting Position: Unrestricted, with a preference for horizontal mounting for optimal performance.
Body Material: Made of Cast Iron, providing durability and strength.
3. Product Features and Benefits
Compact and Proven Design: Reflects Parker’s long-term experience in hydraulics.
The compact design saves space in hydraulic systems while ensuring reliable operation over time.
Wide Range of Spools: The availability of a wide variety of spools makes it suitable for all types of hydraulic systems.
This allows for the design of an unlimited number of hydraulic circuits to meet different application requirements.
Shortest Lead Time: There is no need for warehousing as the product can be quickly delivered, reducing downtime and improving productivity for customers.
Optional Soft Shift Option: For applications requiring smooth operation, the soft shift option is available.
An additional orifice in the solenoid anchor dampens the shifting time, reducing mechanical stress and noise.
Optional Manual Override: In case of electrical failure or for manual operation, the optional manual override feature provides an alternative means of controlling the valve.
Optional Ex Proof Version: The D1VW*EE with explosion proof solenoids is based on the standard D1VW series.
It is ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) and also equipped with IECEx compliant solenoids certified according to IECEx standard for equipment class 2 G.
All explosion proof solenoids are in DC design, and valves for AC operation come with an integrated rectifier, ensuring safe operation in potentially explosive environments.
4. Application Markets
The Parker D1VW008CNJW is primarily targeted at the industrial market. Its reliable performance, advanced features, and wide range of options make it suitable for various industrial hydraulic applications, including but not limited to manufacturing machinery, material handling equipment, and construction machinery.
In conclusion, the Parker D1VW008CNJW is a versatile and reliable directional control valve that offers excellent performance, flexibility, and safety features, making it an ideal choice for industrial hydraulic systems.
