Parker D1VW006KNJW Directional Control Valve

Description

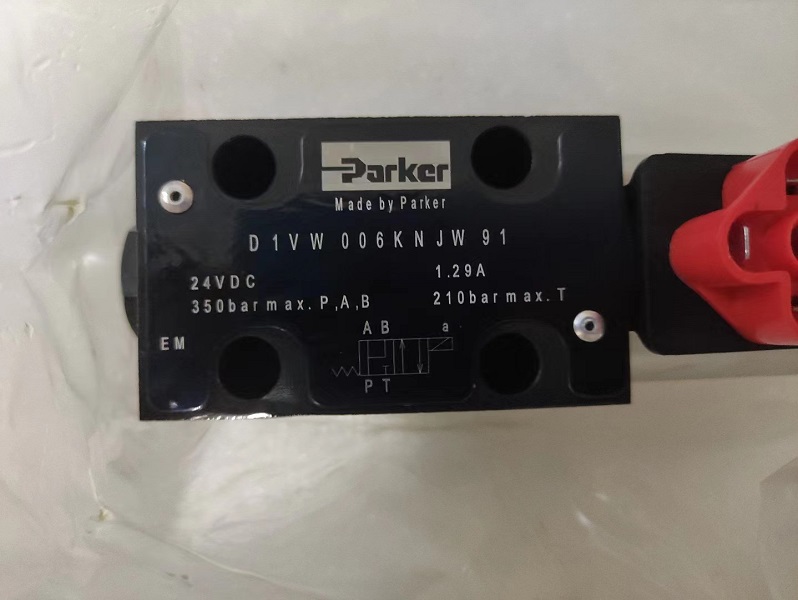

Parker D1VW006KNJW Directional Control Valve

Introduction to Parker D1VW006KNJW:

The Parker D1VW006KNJW is a part of the D1VW series, which is a directional control valve series designed for high functional limits and optimized flow passages. This valve, with a spool code of 006, is suitable for NG06 / CETOP 03 port connections and offers a maximum flow rate of 80 L/min.

The valve is made of cast iron, ensuring durability and longevity. It operates in 2 positions, with a spring offset in position 0 and operated in position b. The actuation type is solenoid, and it comes with a standard solenoid option. The valve weighs approximately 1.5 kg.

The maximum operating pressure of the D1VW006KNJW valve is 350 bar, making it suitable for high-pressure hydraulic systems. It can handle hydraulic oil according to DIN 51524 as the fluid type. The seal material used is NBR, ensuring reliable sealing performance.

The valve is designed for unrestricted mounting positions, preferably horizontal. It is compatible with an input voltage of 24 VDC and utilizes a connector as per EN 175301-803 for connection. The valve operates directly, offering quick and efficient control.

With its optimized flow passages, the D1VW006KNJW valve provides a very low, energy-saving pressure drop, enhancing the overall efficiency of the hydraulic system. It operates within a temperature range of -25°C to 60°C, allowing for versatile application.

In summary, the Parker D1VW006KNJW is a high-performance directional control valve suitable for various hydraulic applications. With its robust construction, efficient flow passages, and high functional limits, it ensures reliable and precise control of hydraulic systems.
