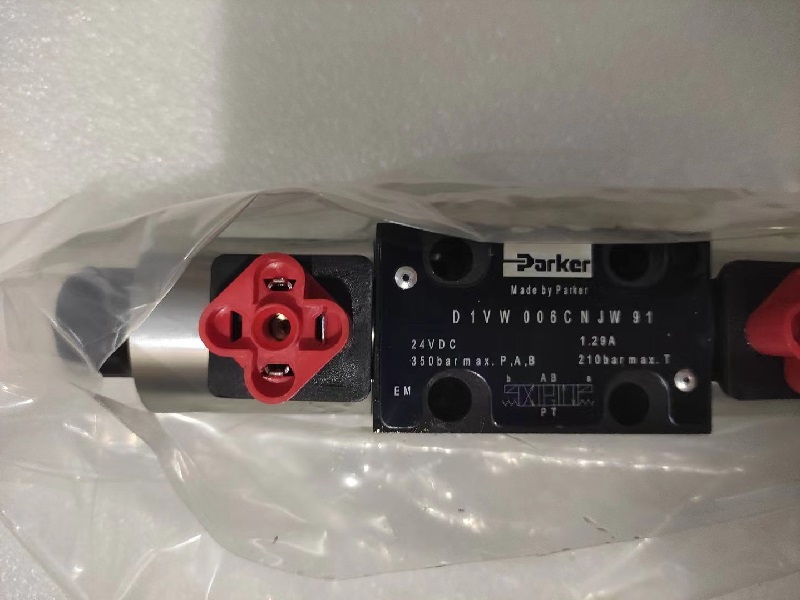

Parker D1VW006CNJW Directional Control Valve

Description

Parker D1VW006CNJW Directional Control Valve

Product Description and Introduction of Parker D1VW006KNJW:

The Parker D1VW006KNJW is a directional control valve designed for high-performance applications with optimized flow channels. This valve belongs to the 2-way function type, suitable for flow direction control in hydraulic systems. It operates directly and is controlled by a solenoid valve.

Manufactured with cast iron material, the D1VW006KNJW valve ensures durability and reliability. With a weight of 2.1 kg, it offers convenient installation and operation.

The maximum operating pressure of this valve is 350 bar, making it suitable for high-pressure hydraulic systems. It has a working temperature range of -25°C to 60°C, enabling it to adapt to various working conditions.

The valve features NBR seals, ensuring reliable sealing performance. It also comes with a standard solenoid valve option, with an input voltage of 24 VDC. The connection type is a connector as per EN 175301-803 standard.

The D1VW006KNJW valve has a maximum flow rate of 80 L/min, making it suitable for use in medium-sized hydraulic systems. It can be installed in any position, although horizontal installation is recommended for optimal performance.

In summary, the Parker D1VW006KNJW valve is a high-performance and durable directional control valve suitable for high-pressure hydraulic systems. With optimized flow channels and reliable sealing performance, it provides precise and reliable hydraulic flow direction control. Whether in industrial, mechanical, or other fields, this valve ensures accurate and efficient hydraulic control.
