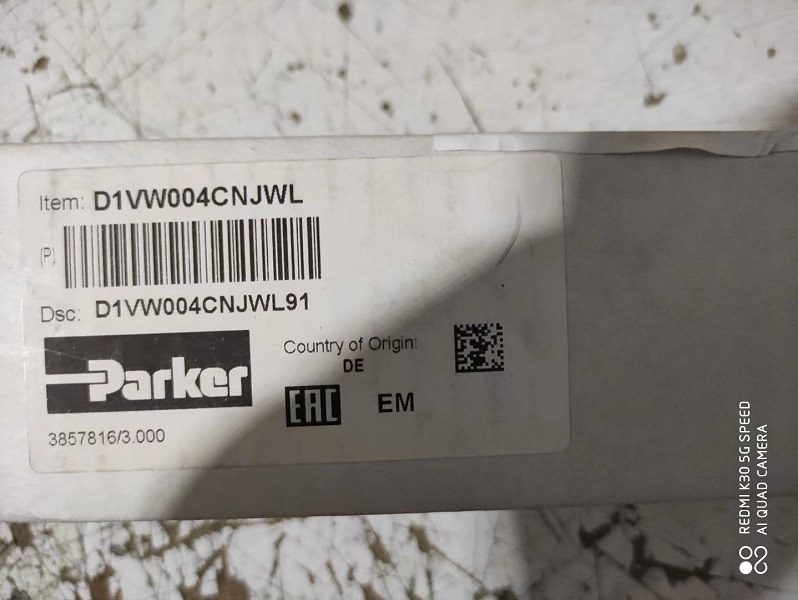

Parker D1VW004CNJWL Directional Control Valve

Description

Parker D1VW004CNJWL Directional Control Valve

Specifications:

• Model: D1VW004CNJWL
• Type: Directional Control Valve
• Maximum Operating Pressure: 5000 psi (345 bar)
• Maximum Flow Rate: 4 gpm (15 lpm)
• Operating Temperature Range: -22°F to 176°F (-30°C to 80°C)
• Voltage: 12 V DC
• Power Connection: Deutsch Connector
• Actuation Type: No Handle, Hydraulic Control
• Material: Aluminum Alloy
• Dimensions: 4.25 x 1.69 x 2.81 inches (108 x 43 x 71 mm)

Features:

• 3-Way, 4-Port directional control valve
• Allows control of hydraulic flow direction and pressure
• Compact design suitable for installations with limited space
• Ideal for directional operations in hydraulic systems
• Fast response time to enhance system efficiency
• Electrically controlled for easy integration into automated systems
• Suitable for industrial, agricultural, and machinery applications.
