Parker D1VW001ENJW Directional Control Valve

Description

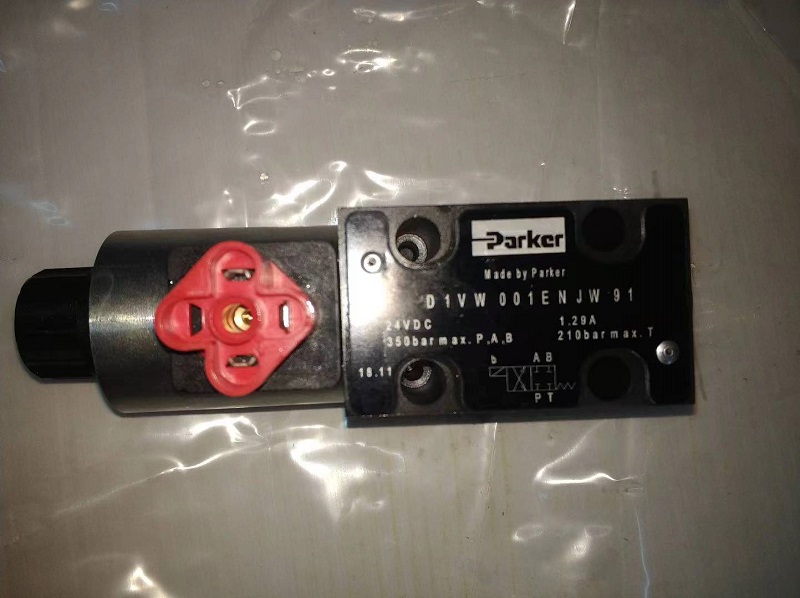

Parker D1VW001ENJW Directional Control Valve

The Parker D1VW001ENJW directional control valve is a high-performance hydraulic valve designed to provide reliable operation in a wide range of applications. This valve features NBR seal material, making it suitable for use with hydraulic oil according to DIN 51524 standards. It operates directly and is driven by a standard 24 VDC solenoid. The valve has a 3-way function and can be switched between two positions, with a spring offset in position 0 and operated in position a. It has a maximum flow rate of 80 L/min and a maximum operating pressure of 350 bar. The port connection is NG06 / CETOP 03, and the valve is mounted using a subplate mounting method. The valve body is made of cast iron, allowing it to withstand a maximum operating temperature of 60°C. The valve can be installed in any position, although horizontal installation is preferred.

In summary, the Parker D1VW001ENJW directional control valve is a powerful and reliable hydraulic valve suitable for various industrial applications. It offers excellent performance in terms of flow and pressure control. With its direct operation and standard solenoid drive, this valve provides efficient fluid direction switching. The valve is constructed with high-quality materials and advanced sealing technology to ensure durability and reliability in different operating conditions. As part of Parker’s hydraulic control valve series, this valve plays a crucial role in controlling and regulating fluid flow and pressure, facilitating efficient operations in various industrial applications.
