Parker D1VW001CNTW Directional Control Valve

Description

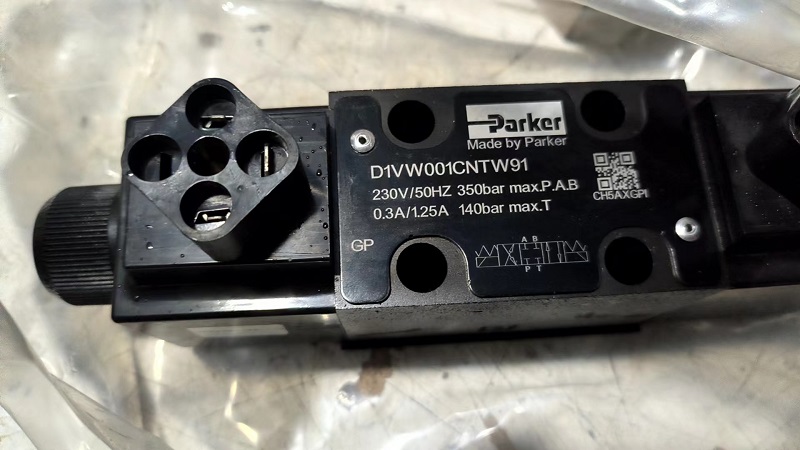

Parker D1VW001CNTW Directional Control Valve

The Parker D1VW001CNTW is a directional control valve in the NG06 (CETOP 03 / NFPA D03) size, belonging to the directional control valve series. This valve has a maximum flow rate of up to 80 L/min and achieves a very low, energy-saving pressure drop due to optimized flow passages. Its maximum operating pressure is 350 bar and is suitable for hydraulic oil (according to DIN 51524) as the working fluid.

The product is made of cast iron, lightweight at 2.1 kg. The seal material is NBR (Nitrile Butadiene Rubber), allowing stable operation in a temperature range of -25°C to 60°C. The valve features three positions, with a spring offset in position 0 and can be operated in position a or b. The operation type is direct, with an input voltage of 230/240V AC, 50/60 Hz. The valve is designed for subplate mounting, with an unrestricted mounting position, preferably horizontal.

It utilizes a connector as per EN 175301-803 standard and comes with a standard solenoid option. The function of the valve is 3-way, and it operates using a solenoid actuation type. The lightweight design makes it suitable for directional control applications in hydraulic systems.
