Parker D1VW001CNJW Directional Control Valve

Description

Parker D1VW001CNJW Directional Control Valve

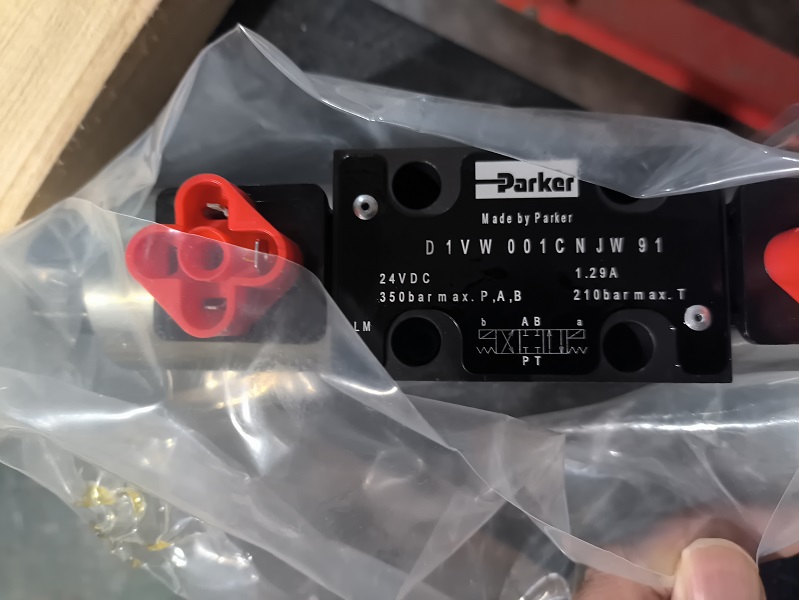

Parker’s D1VW001CNJW directional control valve is designed for industrial hydraulic systems. The valve features NBR seals and has 3 positions, with spring offset in position 0 and operation in positions a or b. It operates directly with an input voltage of 24VDC and a maximum flow rate of 80 L/min. The connection type is a connector that complies with the EN 175301-803 standard, and it uses the standard solenoid option.

The valve is designed for subplate mounting and operates with a solenoid actuation. It has a maximum operating pressure of 350 bar, a maximum operating temperature of 60°C, and a minimum operating temperature of -25°C. The NBR seals are suitable for hydraulic oil according to the DIN 51524 standard. It functions as a 3-way valve with port connections of NG06 / CETOP 03, and its mounting position is unrestricted, preferably horizontal. The body material is cast iron, and it weighs 2.1 kg.

The design and specifications of the D1VW001CNJW directional control valve make it suitable for a wide range of industrial hydraulic systems, providing reliable hydraulic control and high-performance operation. Its compliance with EN standard connectors, NBR seals, and various functional features make it an indispensable component of industrial hydraulic systems.
