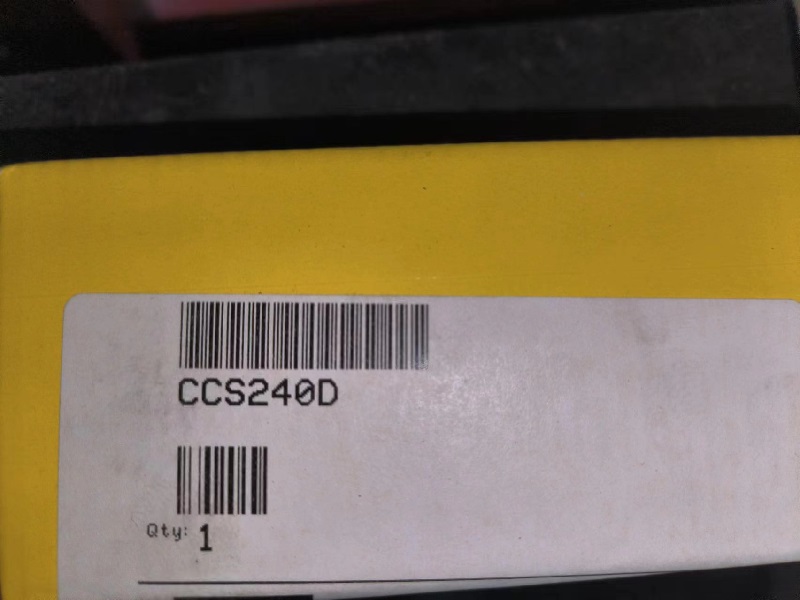

Parker CCS240D Coil

Description

Parker CCS240D Coil

Parker’s CCS024D is a 1/2″ Super Coil, part of the IP69K-rated DC and AC coil series. This product features low wattage power consumption (14 watts) and is suitable for hydraulic cartridge systems. Multiple voltage and termination styles are available as standard catalog options.

Technical Specifications
– Power Consumption: 14 watts – Low Watt
– Division: Hydraulic Cartridge Systems Division
– Voltage: 240 VDC
– Connection Type: Din
– Diode: No
– Current: 0.58 A
– Resistance: 41.74 Ω
– Duty Cycle: Continuous @ 100% voltage
– Coil Type: Standard
– Function: 1/2″ Super Coil
– Maximum Operating Temperature: +392 °F, +200 °C
– Minimum Operating Temperature: -40 °F, -40 °C
– Weight: 0.44 lb, 0.2 kg
– Actuation Type: N/A
– Body Material: N/A
– Flow Rate: N/A
– For Fluid Type: N/A
– Maximum Flow Rate: N/A
– Maximum Operating Pressure: N/A
– Seal Material: N/A

Please note that the above information is for product specifications and technical parameters. Specific applications and installation methods should be determined based on actual requirements and the operation manual.
