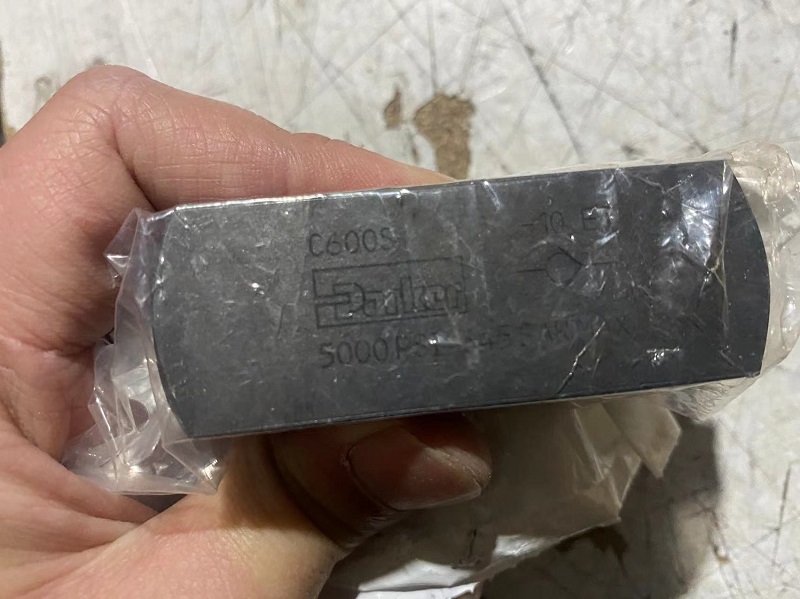

Parker C600S General Purpose Inline Check Valve

Description

**Parker C600S General Purpose Inline Check Valve**

**Product Description:**
The Parker C600S is a general purpose inline check valve designed for controlling one-way flow in hydraulic applications. As part of the Colorflow® family, the C600S features a full guided seat and core design that eliminates the common valve core jitter and instability found in ball-type check valves. Available in sizes ranging from 1/8 inch to 2 inches, the standard soft-seal seat valve structure ensures zero leakage and serves as the standard structure for valves up to 1/2 inch.

**Technical Specifications:**
– Configuration: Inline
– Maximum Operating Pressure: 5000 psi
– Function: Check Valve
– Connection Type: NPT
– Media: Hydraulic Oil
– Flow Direction: Free flow in one direction, shut-off in reverse
– Maximum Operating Temperature: 250 °F (121 °C)
– Minimum Operating Temperature: -40 °F (-40 °C)
– Installation Type: Inline
– Actuation Type: Mechanical
– Flow Rate: 8 gpm, N/A
– Connection Size: 3/8″
– Body Material: Steel
– Seal Material: Nitrile
– Maximum Flow Rate: 30 L/min
– Brand: Colorflow

The Parker C600S General Purpose Inline Check Valve is a highly efficient and reliable solution for hydraulic system control, featuring excellent valve design and material selection suitable for various industrial applications. Its stable valve operation and reliable sealing performance make it an indispensable component in hydraulic systems.
