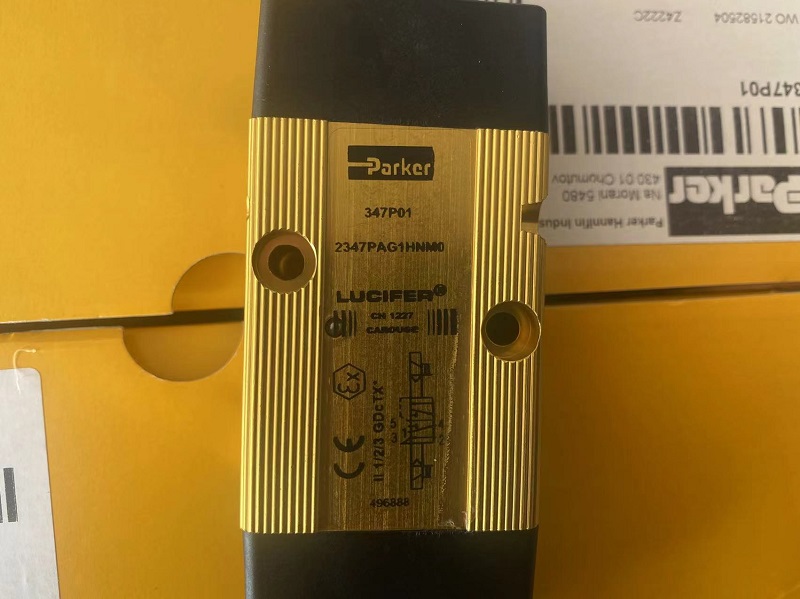

Parker 347P01 Lucifer valve

Description

Parker 347P01 Lucifer valve
The P series of heavy-duty ported spool valves is a complete range of indirect operated valves that can deliver a variety of functions, including 3/2, 5/2, and 5/3, using solenoid or air operation. This series includes many product solutions for valve actuation in the process industry. This range delivers an unmatched high flow performance of up to 1400 liters/min. The spool design and materials make this product extremely reliable for low and high-frequency applications, making it the best choice for critical process control applications. The modularity of this product solution, combined with our ATEX coil program, can optimize total ownership costs, delivering high reliability, extreme flexibility, and the best competitiveness. This series has been SIL approved by a third party.

Technical Specifications

Power Supply Voltage:-

Body Material: Anodized aluminum

Specification Met: With manual override. In-line operators, pilots seat in FKM

Maximum Fluid Temperature: +80°C

Function: Dual solenoids

Minimum Fluid Temperature: -25°C

Maximum Operating Pressure: 10 bar AC/DC

Port Size: G 1/8

Orifice Size: 4 mm

Electrical Connection: –

Valve Type: 5/2 way

Actuation Type: PILOT OPERATED

Port Type: PIPE MOUNTING

Media: Air

Flow Coefficient: 400 L/min

Minimum Operating Pressure: 2 bar AC/DC

Seal Material: NBR
