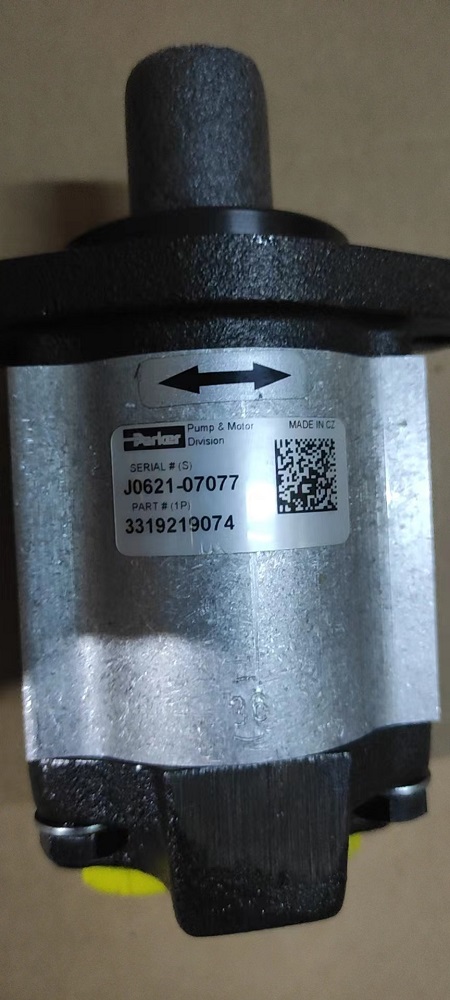

Parker 3319219074 Gear Motor
Description
Parker 3319219074 Gear Motor
Parker Gear Motor PGM505A0100BJ1H1NB1B1D3D3A4 Part Number: 3319219074
Product Specifications:
- Motor Series: PGM50
- Motor Size: 505 (cc/rev)
- Motor Type: Gear Motor
- Motor Configuration: A (Integral spur gears)
- Flange Type: 0100 (SAE-B 2-Bolt)
- Rotation: J (Clockwise)
- Seal Type: 1 (Standard NBR seal)
- Shaft Outlet Port: H1 (Size 16 O-ring)
- Outlet Speed: NB1 (Uniform Speed)
- Center Distance: B1 (30.16 mm)
- Flange Design: D3 (Standard thickness)
- Flange Shape: D3 (SAE-B 2-Bolt circular flange)
- Cylinder Buffer Design: A4 (50 psi – No buffer)
Product Introduction: The Parker Gear Motor PGM505A0100BJ1H1NB1B1D3D3A4 is a high-performance gear motor designed for various industrial applications. This motor features an integral spur gear design, providing a compact size and excellent performance.
The motor has a size of 505 cc/rev and belongs to the gear motor type with a standard NBR seal. It has an SAE-B 2-Bolt flange type suitable for clockwise rotation. The shaft outlet port size is 16 O-ring, and the outlet speed is uniform. The center distance is 30.16 mm, and the flange design is of standard thickness with an SAE-B 2-Bolt circular flange shape. Additionally, the motor incorporates a cylinder buffer design with a buffer pressure of 50 psi and no buffer.
The Parker Gear Motor PGM505A0100BJ1H1NB1B1D3D3A4 offers outstanding reliability and durability, making it suitable for a wide range of industrial applications, including machinery, automation equipment, and metallurgical equipment. It provides efficient power transmission and precise motion control, meeting the requirements for motor performance and reliability.
